Reactivity

SISBID 2025
https://github.com/dicook/SISBID

Elements of Reactivity

  • Sources
    • Any input widget is a source
  • Conductors
    • Use input and pass values to another component
  • Observers
    • Any output is an observer

Two Conductors

  • Reactive expressions and reactive events are two types of conductors
  • Reactive expressions are the archetypical conductor:
    • envelope functionality used in multiple places of an app
    • run evaluations only once
    • store current values
    • update when inputs change
  • Reactive events are only triggered by specific events (e.g. click on an action button)

Reactive Expressions

rval <- reactive({
  ...
})

Called like a function as rval()

  • Reactive expressions are executed lazily and values are cached
  • Lazy: Evaluated on demand as requested by a reactive endpoint
  • Cached: (re-)evaluated only when the value of a dependency changed

Reactive Events

rval <- eventReactive(actionbutton, {
  ...
})

Called like a function as rval()

  • reactive events are executed even more lazily
    • only on demand
    • requested by an actionButton (usually)

Example: Submission Form

  • In RStudio open file app.R in 03_submission
  • Run the app (a couple of times)
  • Turn on showcase mode:
runApp("code/3.3-apps/03_submission/",
       display.mode = "showcase")

Submission form applet screenshot

Submission form applet screenshot

Your turn

  • Open the file 03_submission.R
  • The package colourpicker implements a color wheel as an input widget
  • Allow users to change the color of the dots in the dot plot
  • What other interactive elements can you think of adding?

Answers are in 03b_submission.R

Screenshot of completed app

Screenshot of completed app

Conditional Panels

Screenshot of the inputs without a conditional panel Screenshot of the inputs with a conditional panel

  • Showing a color picker before it is needed could confuse app users
  • conditionalPanel(condition, ...) allows us to encapsulate elements of the UI and only show them when condition is fulfilled
  • Here, a condition of condition = 'input.submit > 0' is true when the submit button was pressed at least once.
  • This is implemented in 03c_submission.R

App Layout

  • The body is laid out using a responsive grid
    • responsive: adapts to different screen sizes
    • different on a cell phone than a laptop
    • boxes are rearranged automatically
  • Structure is introduced by cards
card1 <- card(
  card_header("Hi, I'm a card"),
  class = "bg-primary",
  "I contain some information - ",
  "text, plot, image, input area...",
  "your choice!")

The app layout has 12 columns (width) and you can specify rows as well.

The app layout has 12 columns (width) and you can specify rows as well.

Row heights can be specified as well

Row heights can be specified as well

Cards

04_layout.R

  • Cards help with structuring output
  • Cards have a class parameter
    • bg-xxx produces a colored box
    • border-xxx produces a box with a colored outline
    • card_header(..., class = "bg-xxx") produces a box with a colored header
    • ?validStatuses, represented by xxx above, are primary, secondary, success, info, warning, danger, light, dark

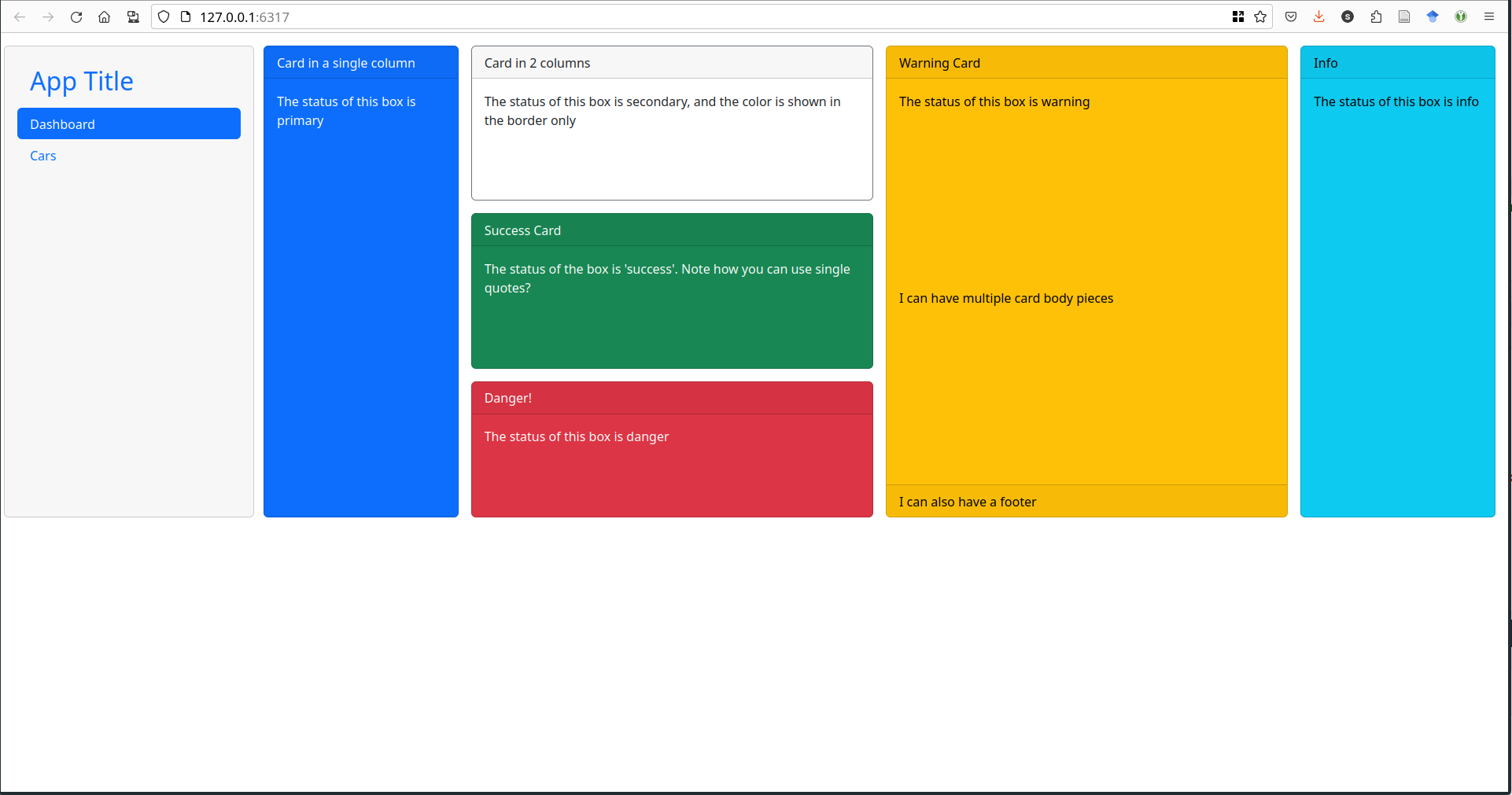

Demonstration of an app with different box statuses

Nested Layouts

  • Body is wrapped in a page_fillable function
  • Cards are aligned using columns
  • Additional rows can be created by nesting layout_columns() functions
body <- page_fillable(
  layout_columns(
    col_widths = c(2, 4, 4, 2), # 12 cols per row
    row_heights = "600px",
    card1,
    layout_columns(card2, card3, card5,
                   col_widths = c(12, 12, 12),
                   row_heights = "auto"),
    card4, card6)
)

04_layout2.R
Nesting rows and columns

Nested Layouts

  • Body is wrapped in a page_fillable function
  • Cards are aligned using columns
  • Additional rows can be created by nesting layout_columns() functions
body <- page_fillable(
  layout_columns(
    col_widths = c(2, 4, 4, 2), # 12 cols per row
    row_heights = "600px",
    card1,
    layout_columns(card2, card3, card5,
                   col_widths = c(12, 12, 12),
                   row_heights = "auto"),
    card4, card6)
)

04_layout2.R
Nesting rows and columns

Other Layouts

  • page_fillable() has different behavior from page_fluid() and page_fixed() - see this article for more information about fillable containers.
  • page_navbar() can be used to create tabs across the top (more on this in a minute)
    • sidebar() allows for common inputs across all tabs
  • layout_column_wrap() can accomplish some very neat tricks
layout_column_wrap(
  width = NULL, height = 300, fill = FALSE,
  style = css(grid_template_columns = "2fr 1fr 2fr"),
  card1, card2, card3
)
  • Shiny UI Editor is currently in Alpha but allows UI creation without writing code

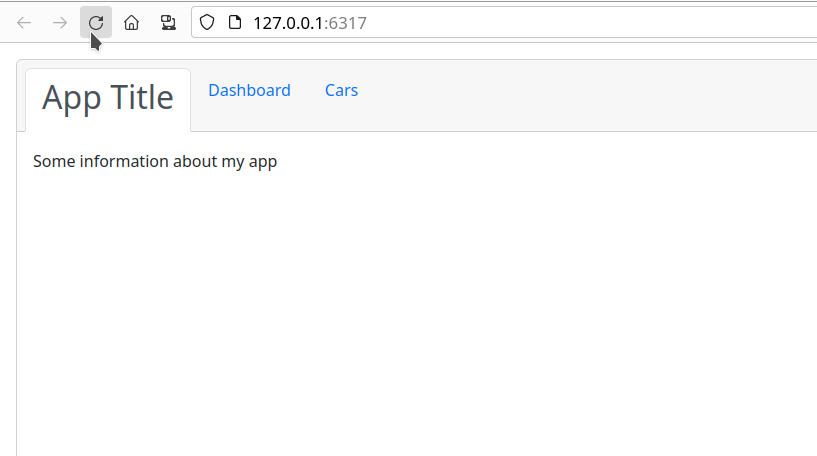

Tab Layouts

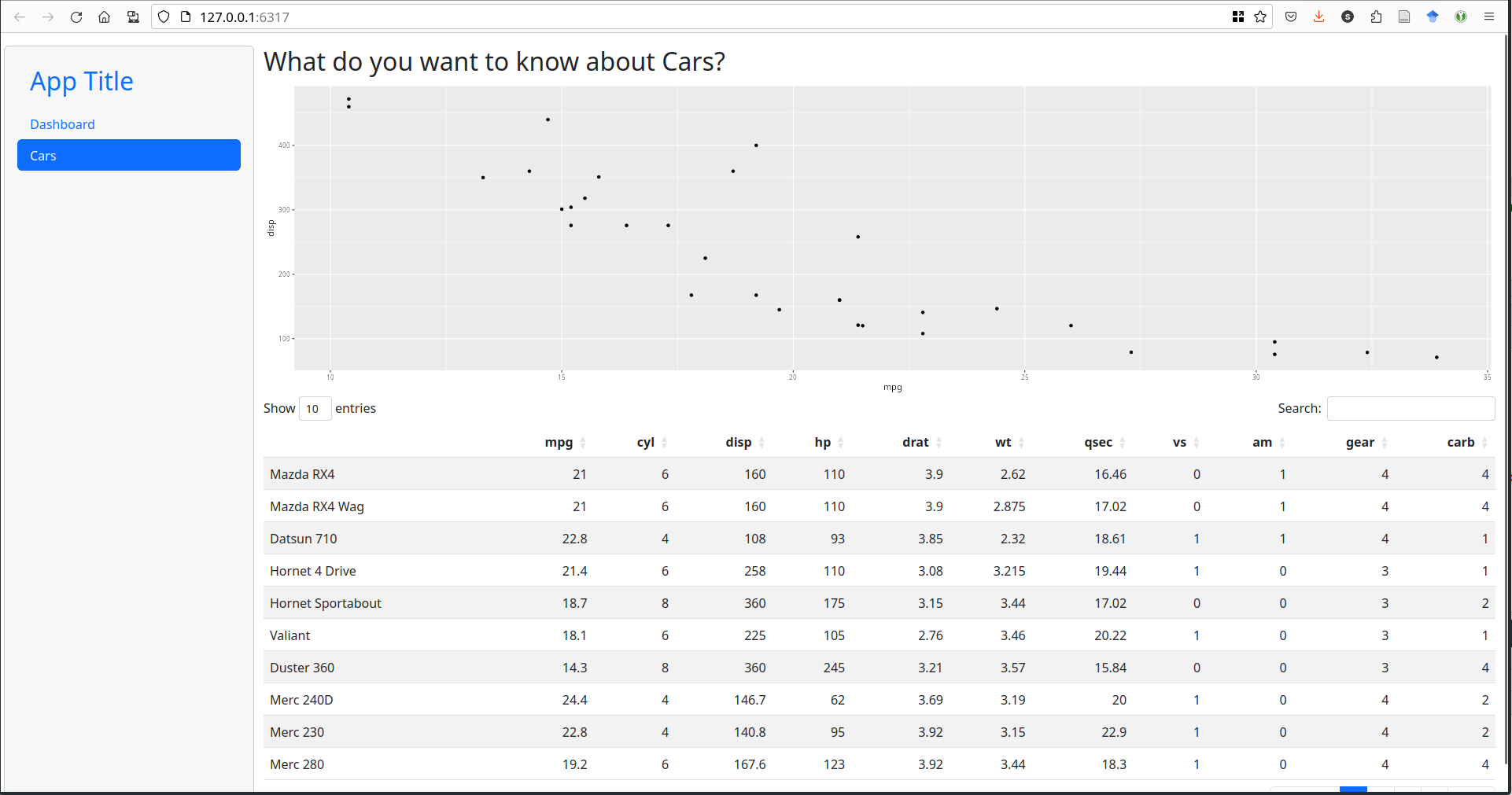

Code: 05_tabsets.R tab1 tab2 tab3

Tabs

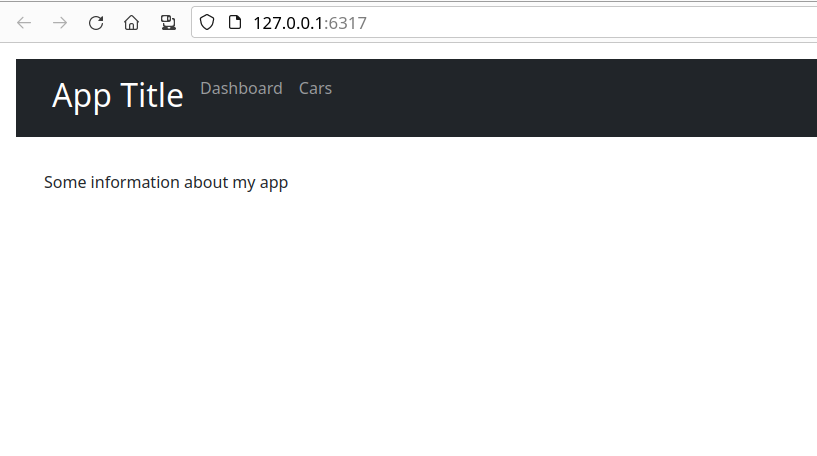

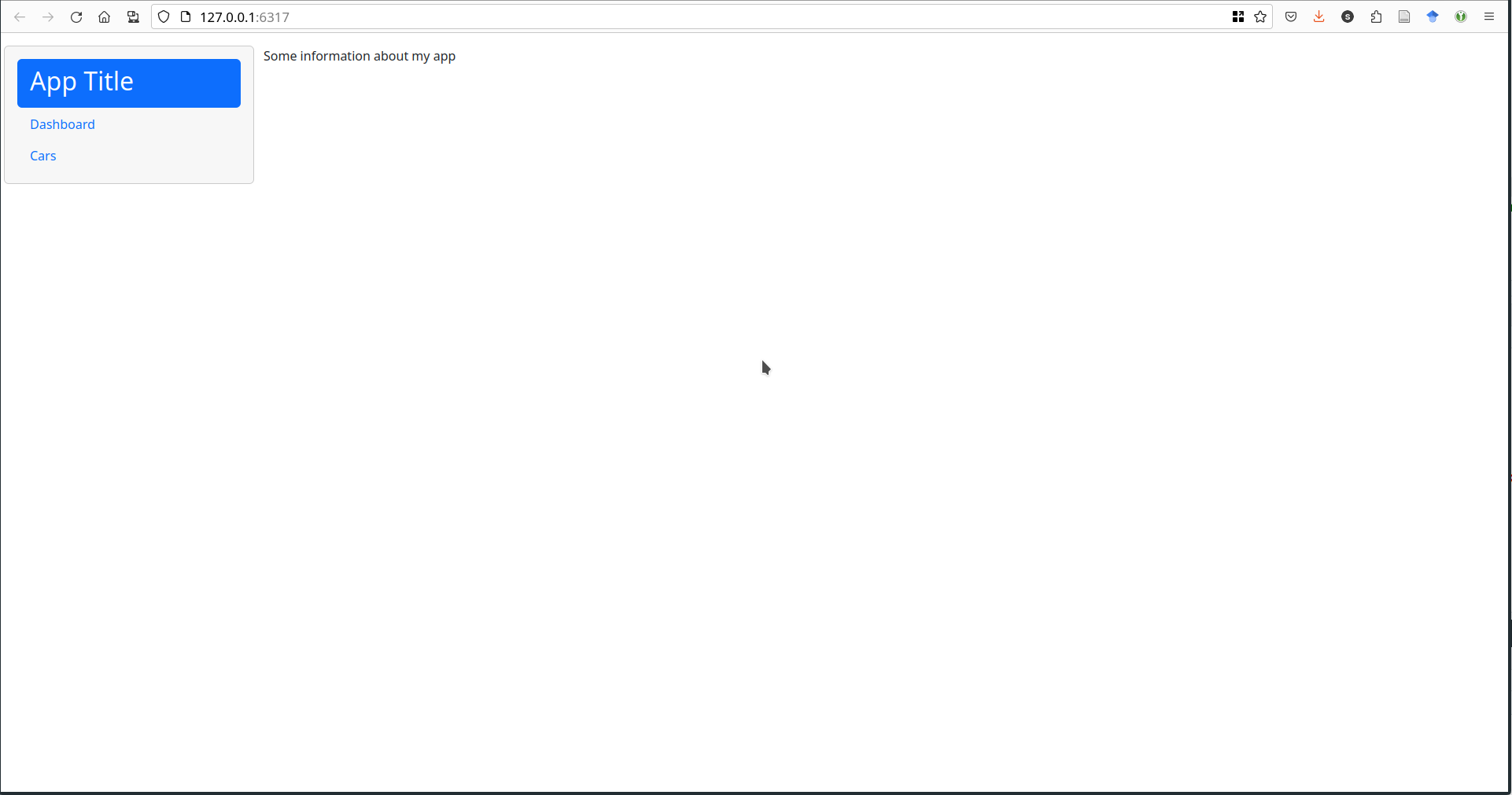

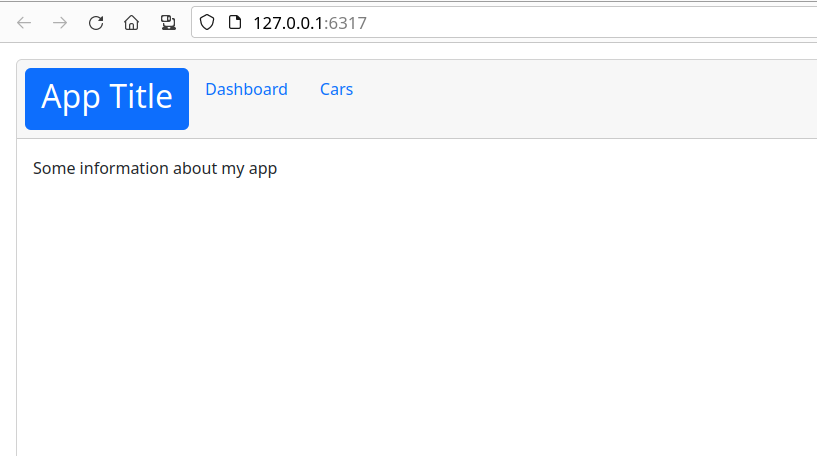

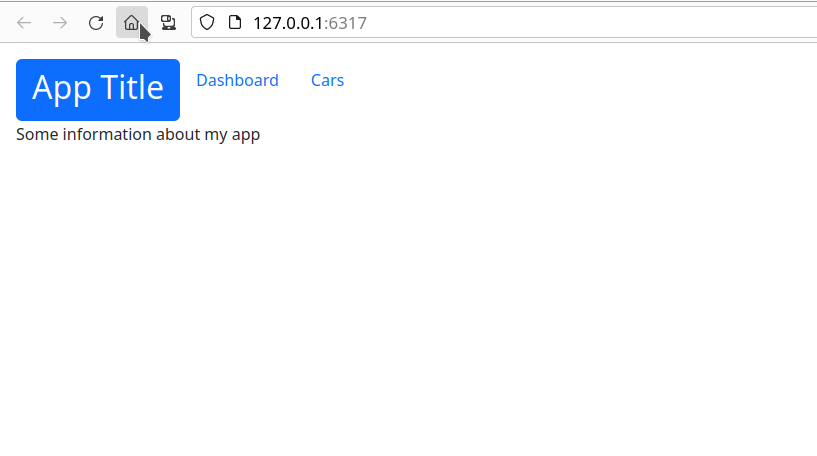

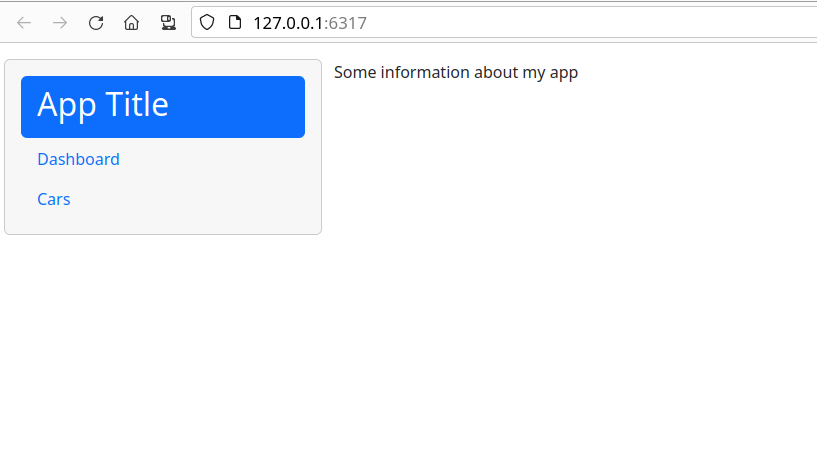

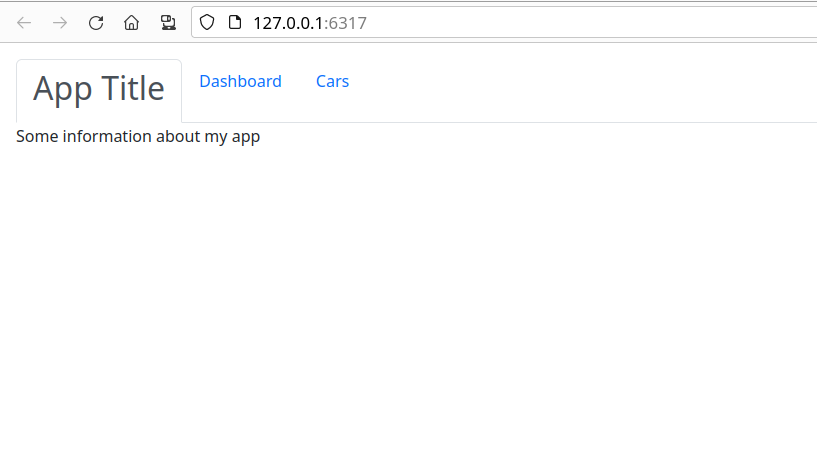

  • Different options for multi-page applets: navset_tab() navset_pill() navset_bar() navset_pill_list() navset_card_tab() navset_card_pill()

Your Turn

Modify the code in 05_tabsets.R to use a page_navbar().

  • What modifications do you have to make?
  • Can you add a sidebar using the sidebar() function?

Resources

  • RStudio Tutorial: https://shiny.rstudio.com/articles/reactivity-overview.html
  • Shiny Cheat Sheet: https://raw.githubusercontent.com/rstudio/cheatsheets/master/shiny.pdf
  • Gallery of Shiny Apps: https://shiny.rstudio.com/gallery/
  • bslib documentation: https://rstudio.github.io/bslib/
