Building interactive documents with learnr, flexdashboard

SISBID 2025
https://github.com/dicook/SISBID

Data dashboard

A dashboard is a rmarkdown format shiny app. It adds more control over plot elements and is more focused on the data analysis than on a study or instructional materials.

Data dashboard

A dashboard

allows you to create an interactive interface to a data set
communicates a lot of information visually and numerically
provides flexibility for the user to explore their own choice of aspects of the data.

Make sure you have the flexdashboard package installed on your computer.

install.packages("flexdashboard")

Create a “New R Markdown” document -> “Interactive”

Basic dashboard

Check that the document compiles, by clicking Knit
Modify the title and author

---
title: "TB incidence around the globe"
author: "by Di Cook"
output:
  flexdashboard::flex_dashboard:
    orientation: columns
    vertical_layout: fill
---

Components

This creates a box or a pane for a plot or results

### Chart 1

This sets up columns

Column {data-width=600}
-------------------------------------

Your turn!

Change the default layout in your flexdashboard to have two plots in the left column.
Make each column equal width
Pick four countries and create the interactive chart of temporal trend.
Change the tab titles to reflect what country is displayed.
Add several sentences on each pane about the data, and some things they should learn about TB incidence in that country.

Adding pages and tabs

A new page (tab) can be added using

Page 1
=====================================

Add a second page to your flexdashboard that focuses on one country and has

a data table showing counts for year, age, sex
a facetted barchart of counts by year, by age and sex

Upload your dashboard to your shiny.apps.io account

Interactive tutorial

A set of notes with interactive plots, quizzes, and coding exercises.

`learnr` interactive tutorial

Simple way to build plots into an online document
Features:
- interactive multiple choice quizzes,
- coding exercises,
- incorporate interactive shiny elements like scrollbars on plots

🛑 To get started, make sure you have the learnr package installed on your computer.

install.packages("learnr")

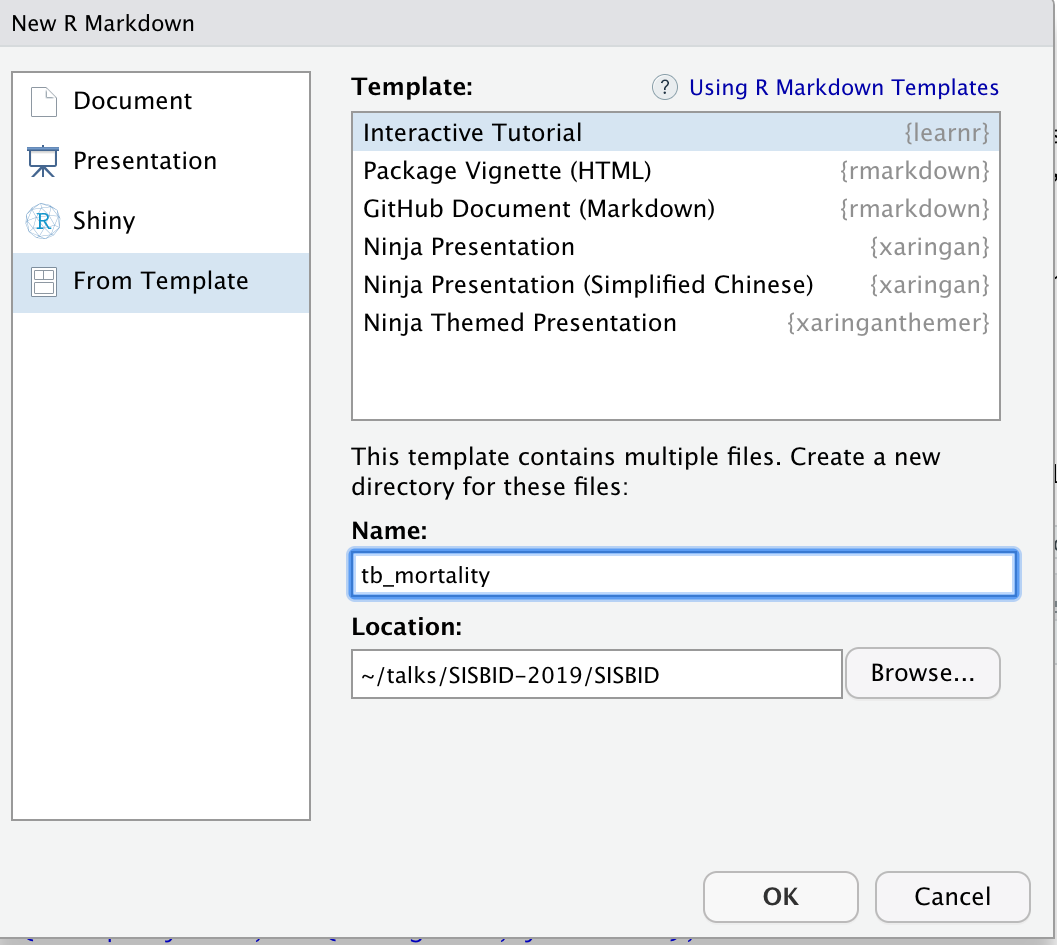

✅ Then create a new “R Markdown” document, “From Template”, “Interactive Tutorial”.

Basic tutorial

🛑 Check that the document compiles, by clicking Run Document

✅ Modify the title and author

---
title: "TB Incidence Around the Globe"
author: "Di Cook"
output: learnr::tutorial
runtime: shiny_prerendered
---

🛑 Check that the document compiles, by clicking Run Document

Write the first section

✅ Set the first section to be a description of the data

## Data description

This is current tuberculosis data taken from [WHO](http://www.who.int/tb/country/data/download/en/),
the case notifications table. The data looks like this:

🛑 Check that the document compiles, by clicking Run Document

✅ Create a data directory in your tutorial folder, and add the TB_burden_countries_2025-07-22.csv data into this.

Basic Tutorial

✅ Next, add a block of R code to read the data, and display the data in the page.
Here, we use the DT package to display the data in the output html.

library(tidyverse)
library(DT)
tb <- read_csv(here::here("data/TB_burden_countries_2025-07-22.csv")) |>
  select(country, iso3, year, e_inc_100k)

datatable(tb)

🛑 Check that the document compiles, by clicking Run Document

Add a plot

✅ Make a separate section titled “Incidence”, and add the code to make a plot, like the following

ggplot(tb, aes(x=year)) +
  geom_bar(aes(weight = e_inc_100k)) +
  xlab("") +
  ylab("TB incidence per 100k")

🛑 Check that the document compiles, by clicking Run Document

Polishing the data description

Loading the libraries generates some messages and warnings on the page.

This is good interactively, but distracting in the finished page.

## ── Attaching packages ──────────────────────────────────────────── tidyverse 1.2.1 ──
## ✔ ggplot2 3.2.0     ✔ purrr   0.3.2
## ✔ tibble  2.1.3     ✔ dplyr   0.8.3
...
## Google's Terms of Service: https://cloud.google.com/maps-platform/terms/.
## Please cite ggmap if you use it! See citation("ggmap") for details.
## Warning: Removed 619 rows containing missing values (geom_point).

We need to change the setup chunk options to turn these off:

Polishing the data description

library(learnr)
knitr::opts_chunk$set(
  echo = FALSE,
  message = FALSE,
  warning = FALSE,
  error = FALSE)

🛑 Check that the document compiles, by clicking Run Document

Building quizzes

An example quiz is provided in the template. Note that the format of the R code is

quiz() wraps a set of questions.
question() contains the text of the question, and is coupled with multiple answer() elements with possible choices.
At least one of the answers needs to be noted as correct with , correct = TRUE. There can be more than one correct answer.

quiz(
  question("Which package contains functions for installing other R packages?",
    answer("base"),
    answer("tools"),
    answer("utils", correct = TRUE),
    answer("codetools")
  )
)

Try making a question about the TB data on the Incidence tab.

🛑 Check that the document compiles, by clicking Run Document

Exercises in coding

Adding exercise = TRUE on a code chunk provides an R console window where readers can type R code, and check for correctness.

Move these into a second section of the document.
Add a coding challenge that asks the reader to make a filter for the data to select just a single year. Click the “Run document” to make sure it works
Add a hint, “you want to use the filter function”
Change the hint to a solution, that provides the correct code

🛑 Check that the document compiles, by clicking Run Document

Adding a shiny element

Because this is an html document, interactive graphics can be incorporated.
We’ll add a section to use interactive plots to examine the temporal trend in TB incidence.

library(plotly)
library(plotly)
p <- tb |>
  filter(iso3 %in% c("AUS", "USA", "CAN", "KEN", "IND", "COL", "ASM")) |>
  ggplot() +
    geom_point(aes(x=iso3, y=e_inc_100k, frame=year))
ggplotly(p)

🛑 Check that the document compiles, by clicking Run Document

Styling and cuteness

Use your emoji and anicon skills to add some friendly elements to the notes.

set.seed(20190709)
emo::ji("fantasy")
emo::ji("clock")

anicon::nia("You've got 30 seconds!", colour="#FA700A", anitype="hover")
anicon::faa("hand-paper", animate="spin", grow=20, color="#B78ED2",
  position=c(0,0,0,200))

🛑 Check that the document compiles, by clicking Run Document

Upload your tutorial to your shiny.apps.io account

Resources

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
